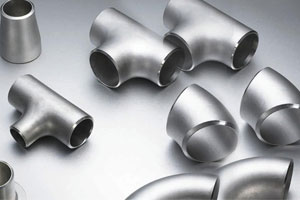

Buttweld Fittings

Size	15NB - 1200NB. SCH: 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS
Range	Elbow: 45, 90 & 180 Deg. Radius Tee: Equal & Unequal Bend: Short & Long Radius 1.5D, 2.5D, 3D, 5D, 6D, 10D Stubend: Short & Long Neck Reducers: Concentric & Eccentric Nipples, Caps & triclover Clamp
Grade	ASME / ANSI B-16.9





Stainless Steel	ASTM A403 WP TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L

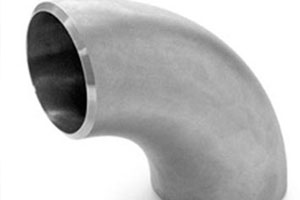

Elbow

We offer Bend and Elbow in stainless steel, carbon steel and alloy steel material. These fittings are also available in monel, nickle, inconel, hastalloy, copper, brass, titanium material to meet the requirements of clients. Our range is designed in line with international quality standard and is widely used in different applications across industries.

Specifications :

Form :

Elbows in long & short radius in 45 deg, 90 deg, 180 deg Grades offered :-

Stainless Steel :

ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L

Size :

1/8″ NB to 48″ NB (Seamless & Welded)

Wall thickness :

Sch. 5S to Sch. XXS.

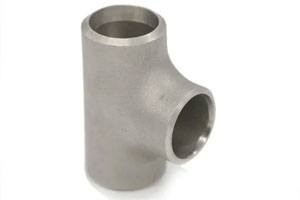

Equal Tee

Equal Tee is a T-shaped device which has three openings that act as an outlet for the pipe. All the three ends of the equal tee are of the same size. We can offer equal in different metals such as monel, nickle, inconel, hastalloy, copper, brass and titanium material. Custom made equal can be developed to befit the specific application requirement of the clients.

Specifications :

Grades Available :

Stainless Steel :

ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L

Size :

1/8″ NB to 48″ NB (Seamless & Welded

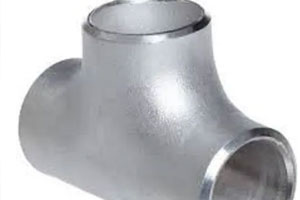

Reducing Tee

Stainless Steel :

ASTM A 182, A 240

Grade :

F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

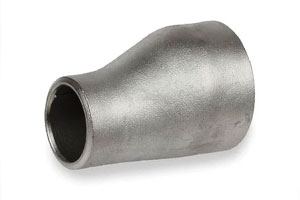

Reducer

These buttweld vacuum fittings are designed to be used in conjunctions with full line of ISO-Universal, ISO-KF and CF UHV Flanges, and are Easily welded to the flanges or each other during on-site installations. All components are made of type 304 stainless steel and are specifically prepared for use in high vacuum process or UHV applications.

Stainless Steel :

Dimensions:

OD: 1.0" x 0.50"
Wall Thickness: 0.065 in (1.65 mm)
A: 1.375 in (34.90 mm)

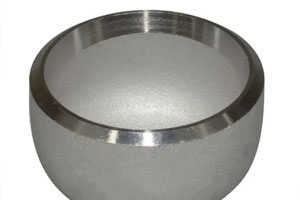

Cap

Stainless Steel :

Size:

O.D.: 1/2”~24”(21.3MM~610MM)(2).Thickness: SCH10S~SCH160S (2.11MM~35MM)

Material:

TP304/304L, TP316/TP316L, TP310S, TP321, TP321H, TP347/TP347H,.904L, S31803,S32750

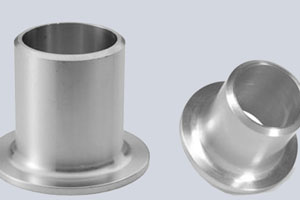

Long & short Stub End

Our Long and Short Stubend Buttweld Fittings are widely used in ship building, drilling & well building and aircraft & aerospace industries. These are designed in line with international quality standards to ensure long service life. Our range is available in long stub end & short stub end forms to meet the requirements of clients.

Specifications:

Size :

1/8″NB to 48″NB IN

Schedule :

SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type :

Seamless / ERW / welded / fabricated

Form :

Long stub end & short stub end

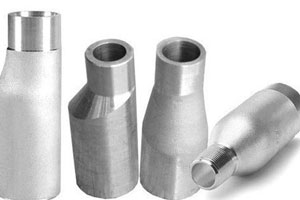

Swage Nipple & Barrel Nipple

We offer Swage Nipple and Barrel Nipple, specially designed to withstand high temperature and pressure. These can be used for permanent welded connection or detachable thread connection. Our range is available in varied specifications to suit the application based requirements of the clients.

Features :

Durable
Corrosion resistance
High tensile strength
Temperature resistance
Superior finish
