Carbon Steel

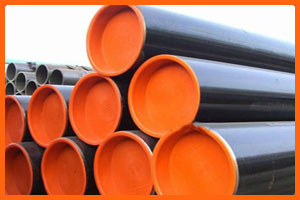

Carbon Steel Pipes


We are well known Exporters, Suppliers & Stockiest of Carbon Steel Pipes from Mumbai, India. We are highly appreciated in the market for our collection of Carbon Steel Pipes. These pipes are manufactured by our professionals using optimum quality steel at the vendors' end.

Range :
½”, ¾”, 1”, 1 ¼”, 1 ½”, 2”, 2 ½”, 3”, 3 ½”, 4”, 5”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20”, 22”, 24”, 26”, 28”, 30”, 32”, 34” & 36” NB IN SCH 20 , 30, STD, 40 , 60 , 80 , XS , 100 , 120 , 140 , 160 & XXS as Per NACE MR 01 75
Type :
SEAMLESS / ERW / WELDED/ FABRICATED / LSAW
Form :
Round, Square, Rectangular, Hydraulic Etc.
Length :
Single Random, Double Random & Cut Length
END :
Plain End, Bevelled End, Threaded
Carbon Steel Pipe

Carbon Steel Pipe / LSAW pipe

ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A , B & C . API 5L GR. B , API 5L X 42 ,
API 5L Grade B

Low Temperature Carbon Steel Pipe :
ASTM A333 GR.6
Mild Steel Pipe & Galvanized (GI) Pipe :
IS 1239 / IS 3589 (FE 330 / FE 410)
Test Certificate

Mill Test Certificate as per EN 10204 / 3.1

Carbon Steel A106 Pipes


ASTM A106 Seamless Pressure Pipe (also known as ASME SA106 pipe) covers seamless carbon steel nominal wall pipe for high-temperature service. Suitable for bending, flanging and similar forming operations.

Federal Steel Supply stocks a full range of A106 seamless carbon steel pipe. Grades B/C
Sizes
NPS 1/8" to NPS 48”
Wall thickness:
Schedules 10 through 160, STD, XS, XXS.
*Commonly requested unscheduled walls up to 4” and certified minimum wall items

Carbon Steel Tubes


Heritage Steel is engaged in Stocking, Supplying & Exporting a wide range of Alloy Steel Pipe Fittings from Mumbai, INDIA.

Size:
Seamless Fittings 1/2"- 36'’
Wall Thickness:
SCH10 – SCHXXS - SCH160
Standard:
ASME B16.9, ASME B16.28, ASME B16.11
Alloy butt weld fittings:
A234WP5 / WP9 / WP11 / WP22 / WP91, A420WPL6, A860WHPY 42/52/60/65/70/80
Alloy Steel WP5 Elbows
Alloy Steel WP5 Long Radius Elbow
Alloy Steel WP5 Short Radius Elbow

Alloy Steel 90 Deg Elbow
Alloy Steel 45 Deg Elbow
Alloy Steel 180 Deg Elbow

Alloy Steel WP9 Tee
Alloy Steel WP9 Equal Tee
Alloy Steel WP9 Reducing Tee

Alloy Steel WP11 Reducer
Alloy Steel WP11Concentric Reducer
Alloy Steel WP11Eccentric Reducer

Alloy Steel WP22 End Cap
Alloy Steel WP22 Cap
Alloy Steel WP22 Bend

Alloy Steel WP91 Stub end
Alloy Steel WP91 Long Stub end
Alloy Steel WP91 Short Stub end

Alloy Steel Nipple
Alloy Steel Swage Nipple
Alloy Steel Barrel Nipple
Alloy Steel Reducing Nipple

Carbon Steel Flanges


Offering a wide range of carbon steel Flange from Mumbai, India. Carbon Steel Flange Exporters | Carbon Steel Flange Suppliers | Carbon Steel Flange Stockiest | Carbon Steel Flange Mumbai | Carbon Steel Flange India.

Range :
½” NB to 60” NB
Standard :
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS,ASA 150#, ASA 300# DIN ND 6, 10,16,25,40 Etc.
Nace :
NACE MR 01-75, MR 01 03
Type of Flanges
• Carbon Steel Weld Neck Flanges – WNRF
• Carbon Steel Socket Weld Flanges - SWRF
• Carbon Steel Slip On Raise Face - SORF
• Carbon Steel Blind Raise Face – BLRF
• Carbon Steel Lap Joint
• Carbon Steel Screwed (Threaded)
• Carbon Steel Long Weld Neck
• Carbon Steel Reducing
• Carbon Steel Spectacle Blind
• Carbon Steel Ring Joint
• Carbon Steel Large Dia Ring
• Carbon Steel Orifice
• Carbon Steel Girth Flange
Carbon Steel Flanges
Standard :
ASTM / ASME A/SA 105 / A36, A694 F42, F46, F52, F60, F65, F70 Low Temperature Carbon Steel Flanges
Standard :
ASTM / ASME A 350 LF 2 / A516 Gr.70
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE.
Test Certificate

Manufacturer Test Certificate as per EN 10204 / 3.1

Carbon Steel Fittings


We are one of the leading stockiest, suppliers & Exporters of a wide array of Carbon Steel Pipe Fittings. These fittings are manufactured at the vendors end keeping in mind the specifications of our clients. The offered pipe fittings are widely used in varied industries like automobile, engineering and petrochemical.


Carbon Steel Butt-weld Pipe Fittings
Range :
1/2"NB TO 48"NB IN SCH: 20, 30, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75.
Type :
SEAMLESS / WELDED/ FABRICATED
Form :
Carbon Steel Elbows in Long & Short Radius in 45 deg, 90 deg, 180 deg.
Carbon Steel Equal, Unequal Tee & Barred Tee.
Carbon Steel Eccentric Reducer & Concentric Reducer.
Carbon Steel Caps & Crosses.
Carbon Steel Long & Short Stub End.
Carbon Steel Swage Nipple & Barrel Nipple.
Carbon Steel Long Radius Bend
Long Radius Bend, Piggable Bend, Hot Bend with Radius R=3D, 5D, 6D, 8D, 10D & 20D. Minimum wall thinning rate and ovality No wrinkles
Carbon Steel Forged Pipe Fittings
¼” NB to 4” NB in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.
Type :
Socket Weld (S/W) & Screwed (SCRD)
Form :
Elbow 45 deg & 90 degree, Tee , Union, Full & Half coupling, Cross, Cap, Swage Nipple, Plug, Bush
Carbon Steel Butt Weld Pipe Fittings
Standard :
ASTM A234 WPB /MSS-SP-75
Grade :
WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Pipe Fittings

Standard :
A420 WPL3/A420 WPL6
Carbon Steel Forged Pipe Fittings
Standard :
ASTMA 105/A694/ A350 LF3/A350 LF2.
Grade :
F42/46/52/56/60/65/70
Other Fittings :
Customised Fittings
Hydraulic Fittings
Instrumentation Fittings
Test Certificate

Manufacturer Test Certificate as per EN 10204 / 3.1
